    Specification
    Type Voltage Power Lamp
    holder
    Electric
    light source
    irradiation distance Luminous
    faux
    Weight Protection
    class
    TG28

    220V
    50Hz/60Hz





    2000W





    GY16



    tungsten
    halogen light


    2030





    53000



    30.0kgs

    IP56



    TG28-A 60.5kgs
    TG28-B 28.4kg



    Remark:

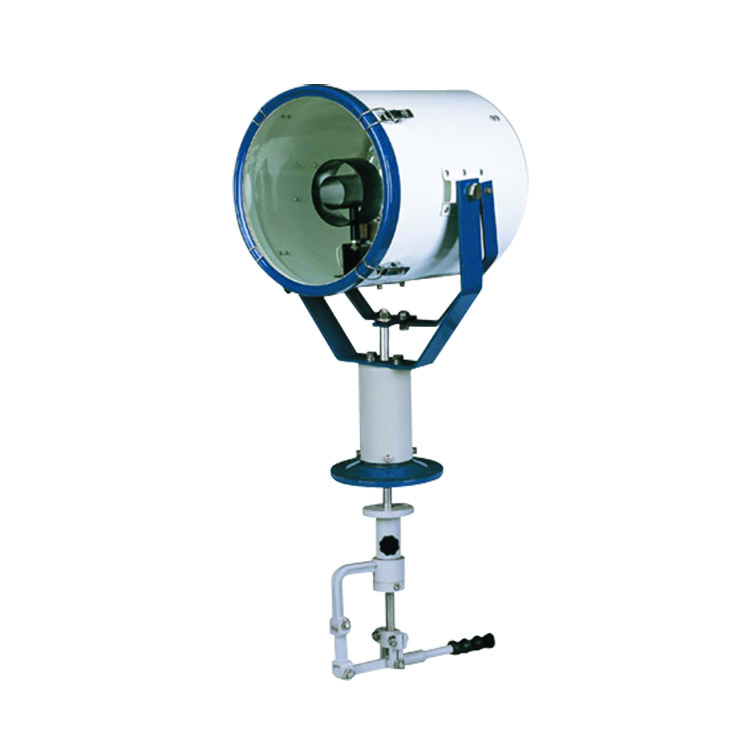

    1. TG28、TG28-A、TG28-B fit for illuminating ship, port, station, plaza and building site, the shell adopts stainless steel, High pouring reflector, and adopt imported light source, it has the feature of high strength, durability, convenient use, and safe and reliable electric performance, it can be used in the environment above -20 degree.
    2. TG28 adopts cabin operation .equipped with hand lifting gear device, which can control Lightbody by hand to rotate for 350 degrees horizontally and bend for 30 degrees vertically, with flexible and convenient operation.
    3. TG28-A adopts remote operation .cast aluminum alloy base, there are miniature gear motoring the body for controlling up and down, front and back, also, equipped with a special control box which can operate the light on control table to horizontally bend for 20 degree -50 degrees, bend total velocity 3 degrees/second.
    4. TG28-B adopt deck operation, it can control body to rotate for 350-degree horizontally and bend for 30 degrees, with flexible and convenient operation.
    5. This series of lamp has the feature of small measurement lightweight and long-distance illumination.
