the scope apply
Fit for the ships with the length less than 12M as lamp signal when night navigation.
Products characteristic
- The shell is made of high-strength engineering plastics PA+GF injection, lampshade adopts injection of PC, the lens hood adopts the high-quality brass alloy.
- The signal light has the whole seal structure, it is waterproof under the bad environment.
- The signal light choice the special signal bulb which confirm the ship norm, it can replace the bulb when open the up cover.
- The signal light can work normally under the temperature -30℃~50℃
Adopt standard
- Conform to《CONVENTION THE INTERNATIONAL REGULATIONS FOR PREVENTING AT SEA,1972 >and《GRADE ENTRY AND BUILDING NORMS FOR STEEL SHIPS》。
- Conform to international standard IEC60958-1 -2008.
- Conform to the international standard of marine electric signal light’s technical condition GB/T 3028-1995.
Specifications
Name | Type | Visibility | Level arc | Bulb | Protection class | Color | Weight |
starboard light | CXH1-3P | 2 | 112.5° |
24V25W (B15d)
|
IP56
|
Green | 0.5kg |

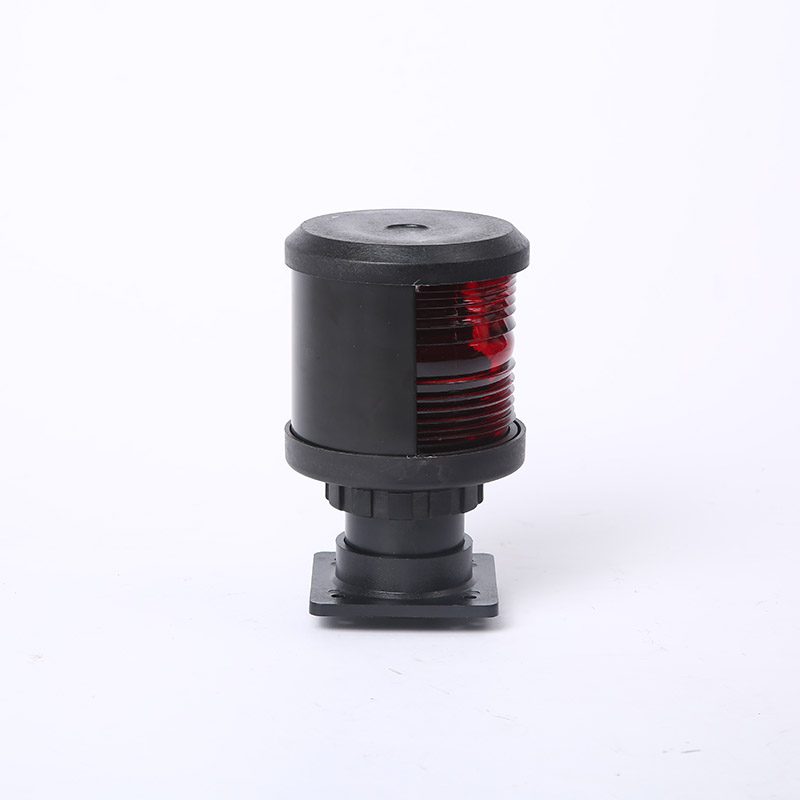

port light | CXH2-3P | 2 | 112.5° | Red | 0.5kg | ||
masthead light | CXH3-3P | 5 | 225° | transparent | 0.5kg | ||
stern light | CXH4-3P | 2 | 135° | transparent yellow |
0.5kg | ||
all-round light | CXH6-3P | 2 | 360° | Red Green transparent |
0.5kg |
